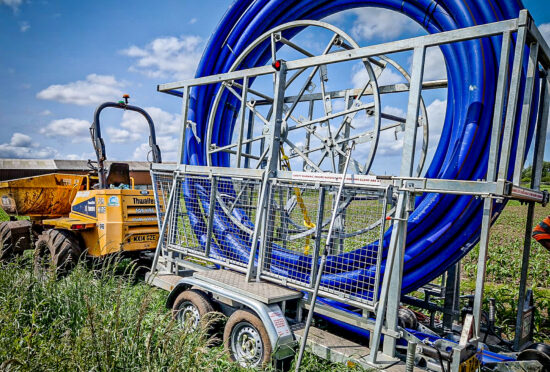

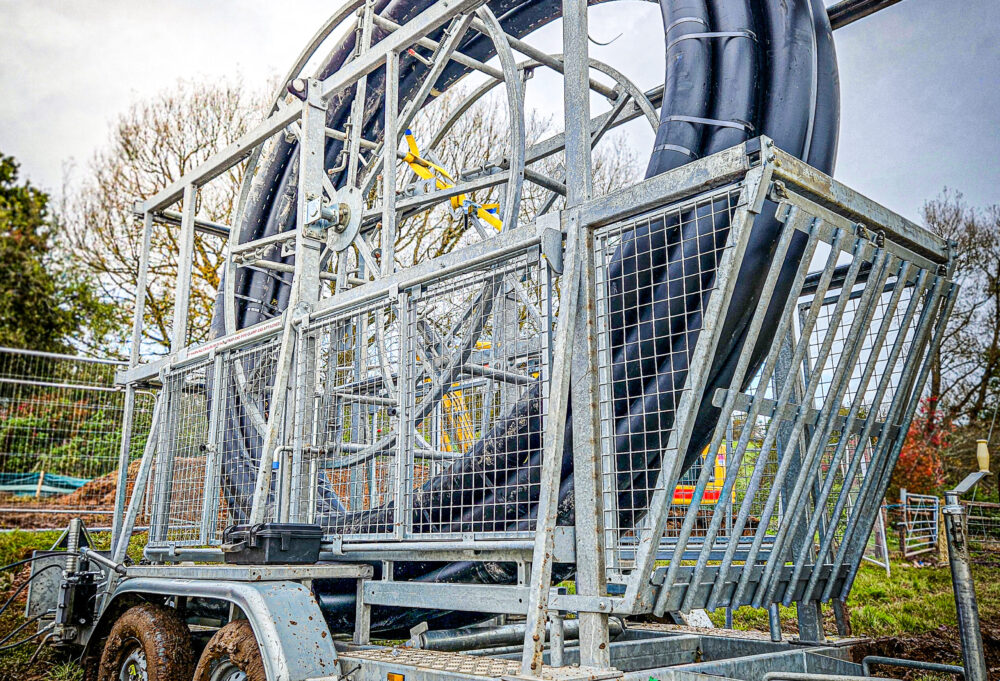

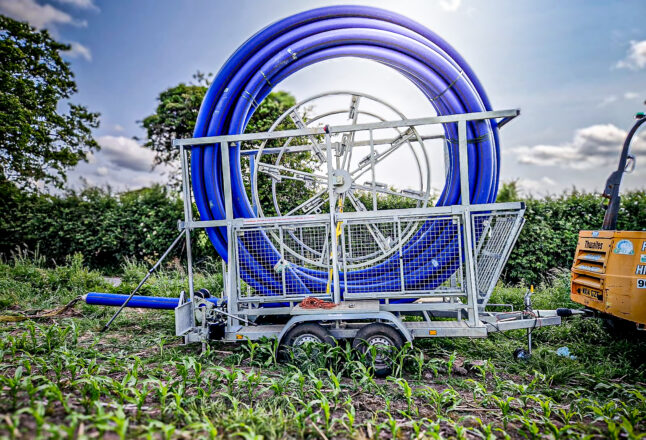

180 Pipe Coil Trailer
For the safe transport, storage and dispensing of coiled PE from 40mm to 180mm. Our Pipe Coil Trailers offer efficiency and ease of dispensing across all methods of pipe laying such as sliplining, open trench and directional drilling.
The coil is restrained within a steel cage to prevent it ‘springing away’ and pipe is restrained duringtransport and dispensing. The central drum design ensures smooth, easy dispensing. All loading and dispensing procedures are operated from ground level to conform with GIS/E49 specification. Trailers are robust in construction, maintenance requirements are low, and the trailers can be towed by a typical long wheelbase vehicle. Our trailers are suitable for registration in all EU countries. Recent enhancements include full guarding in all four quadrants to keep coils secure during handling.
The 180 Pipe Coil Trailer handles coils of PE with a pipe diameter from 40mm to 180mm. It accommodates a 100 metre coil of 180mm SDR 11/17 PE.
- User Safety – no need for operatives to put hands within the rotating drum at any stage

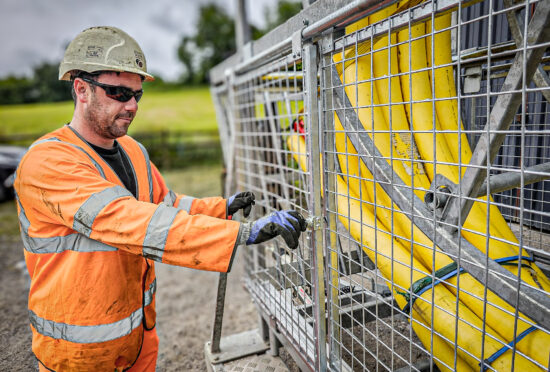

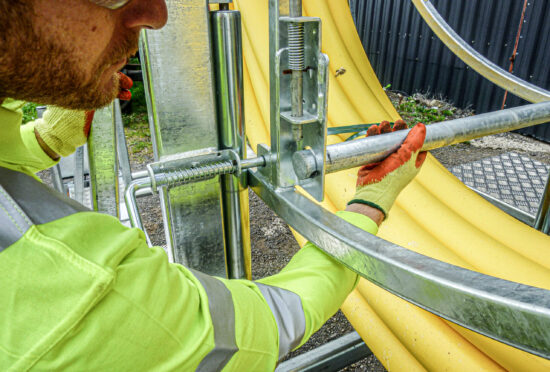

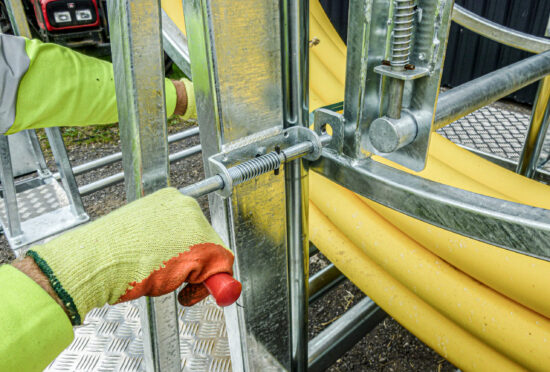

- Enhanced Safety – sliding guards allow easy access for fitting coil end restraints, ensuring maximum safety. Mesh guarding on all four quadrants keeps coils securely contained.

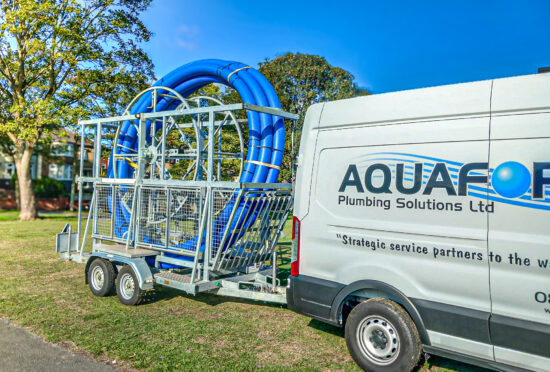

- Compatibility – capable of being towed by a standard long wheelbase vehicle
- Speed of use – unique central drum design ensures pipe is dispensed/recoiled smoothly
