Pipe Handler – Large Diameter PE

Details

Inserting PE pipe into a host main can now be carried out safer, simpler and faster with the use of Steve Vick International’s Pipe Handler.

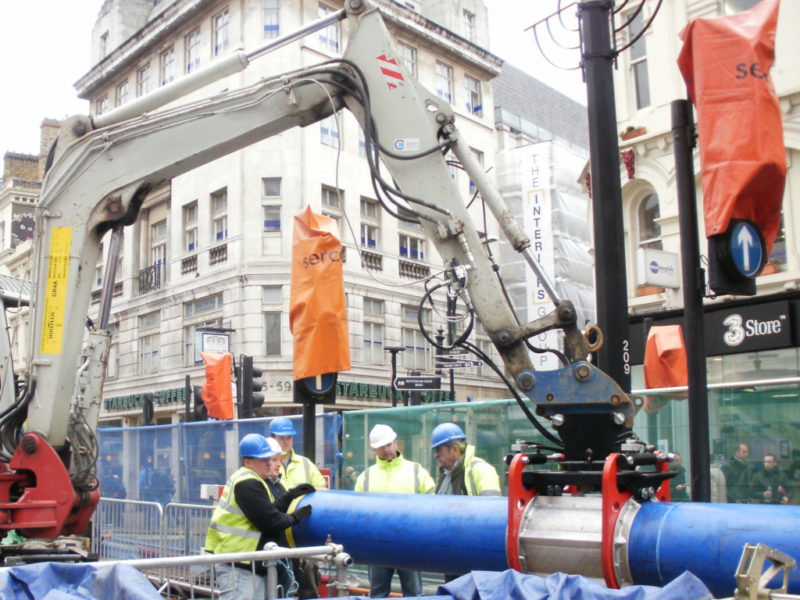

Attached to the quick hitch or standard bucket pins of an excavator, The Pipe Handler is designed to grip the PE, position it in the excavation and insert the pipe. The entire operation is controlled from the cab, avoiding the need for operatives to handle the pipe or enter the trench.


There are three models in the range handling pipe diameters from 250mm to 630mm in diameter. Each model is capable of handling various diameters using shell inserts. The Pipe Handler may be fitted to typical 5-8 tonne hydraulic excavators.


See More

The PE can then be positioned in the trench and be inserted into the host main. All these operations are powered by the hydraulic power of the excavator and are controlled from the cab using the direction button or the foot pedal. There is no need for the operative to handle the pipe or enter the trench.

See Less

Make An Enquiry

Downloads

Large Diameter Pipe Handler Product Sheet

Benefits of the Large Diameter Pipe Handler

  • Safer alternative to using an excavator bucket and sling to insert PE pipe
  • Avoids the need for operators to work in the trench
  • Fast – typical insertion speeds of 5-10metres per minute – capable of inserting long lengths of pipe
  • One stage set up for entire insertion operation
  • Simple – no need for anchoring pins
  • Swivel head allows pipe to be positioned ready for insertion

Technical Specifications of the Large Diameter Pipe Handler

  • PE Size: 180mm to 630mm and all sizes in between (and the equivalent measurements)
  • Functions: Grip/release – PE pipe is inserted or retracted using excavator arm
  • Maximum Height: 800mm(31″) to 2120mm (83″) depending on size of PH
  • Maximum Width: 720mm (28″) to 1360mm (54″) depending on size of PH
  • Length: 720mm (28″)
  • Top Bracket Pins: 44mm (2 of each) (adaptor’s available for large excavators)
  • Hydraulic Fittings: Typically, 3/8″ and 3/4″ flat face quick fit couplers
  • Weight: 340kg to 490kg depending on size of PH
