Coil Control

Coil Control

Details

Coil Control is a significant advancement in the safe handling of coiled HDPE pipes within the water utilities industry, directly addressing a primary industry safety concern: the release of stored kinetic energy within coiled pipes. By neutralising this energy automatically, Coil Control ensures that pipes can be handled and uncoiled with minimal risk, a feature crucial for maintaining operator safety in demanding on-site conditions.

Beyond safety, Coil Control is environmentally friendly as it allows the operator to use only the necessary amount of coiled pipe per project as the device can be stopped and removed, allowing the remaining pipe to be used in future projects.

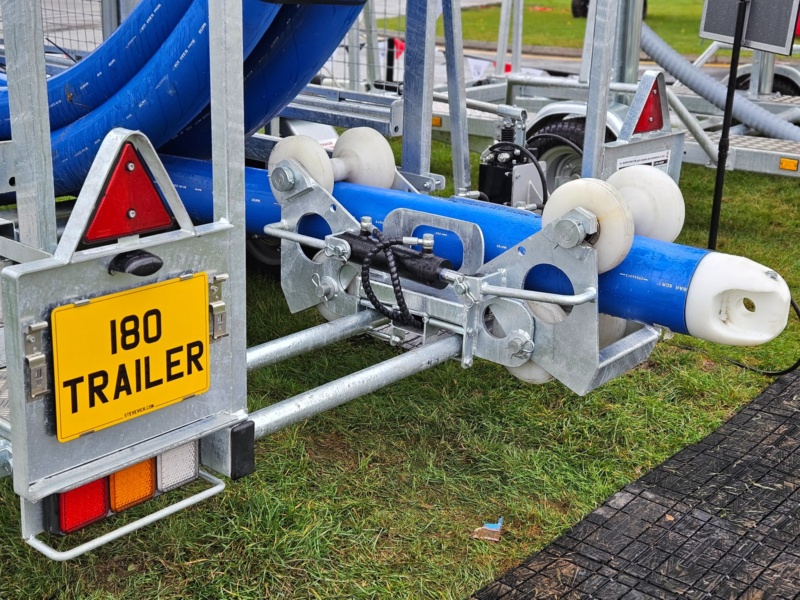

Coil Control is compatible with the full range of Steve Vick International (SVI) trailers, including the 180 Pipe Coil Trailer, Hexi Trailer, and 125/160 Pipe Coil Trailer, making it easily adaptable across various projects. Its quick, on-site installation and adjustable hydraulic pressure settings enable users to fine-tune the device according to specific site conditions, pipe diameter, and SDR requirements.

Make An Enquiry

Benefits of Coil Control

  • Elimination of Dangerous Stored Energy – Coil Control removes the stored energy from the pipe, mitigating health and safety risks for site operatives and the public.

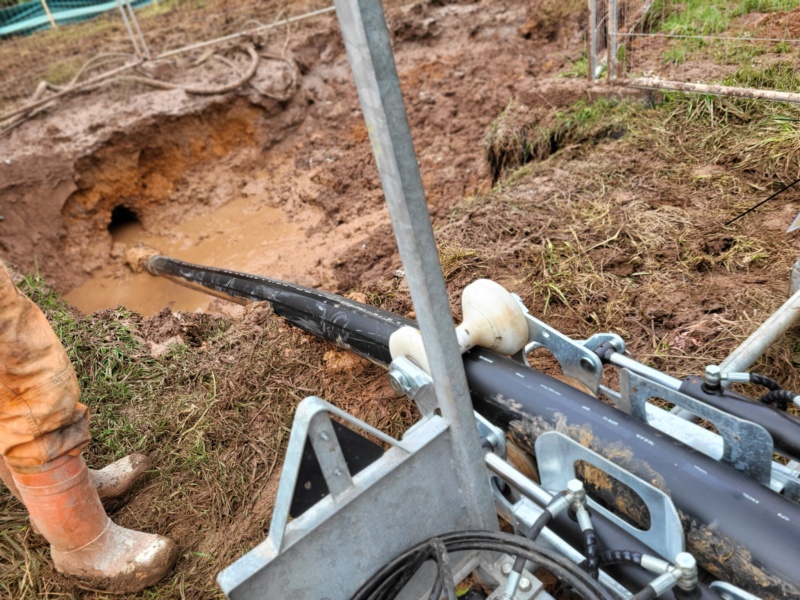

  • Stable Pipe Handling – The device ensures the pipe is stable on the coil trailer, feeding directly to the floor, thereby reducing manual handling and lifting for operatives.
  • Adjustable Straightening Pressures – Easily adapt to different ambient temperatures and pipe SDRs, providing flexibility for various working conditions.
  • Environmentally Friendly – Use only the necessary amount of coiled pipe per project; the device can be stopped and removed, allowing the remaining pipe to be used in future projects.
  • Minimised Distortion – Dual conical rollers are designed to minimise circumferential distortion, maintaining the integrity of the pipe.
  • Easy Installation and Operation – Coil Control can be quickly fitted to the trailer on-site and operated using a manually operated hydraulic pump.
  • Versatile Pipe Handling – Compatible with pipe diameters from 125mm to 180mm, making it suitable for a wide range of applications.

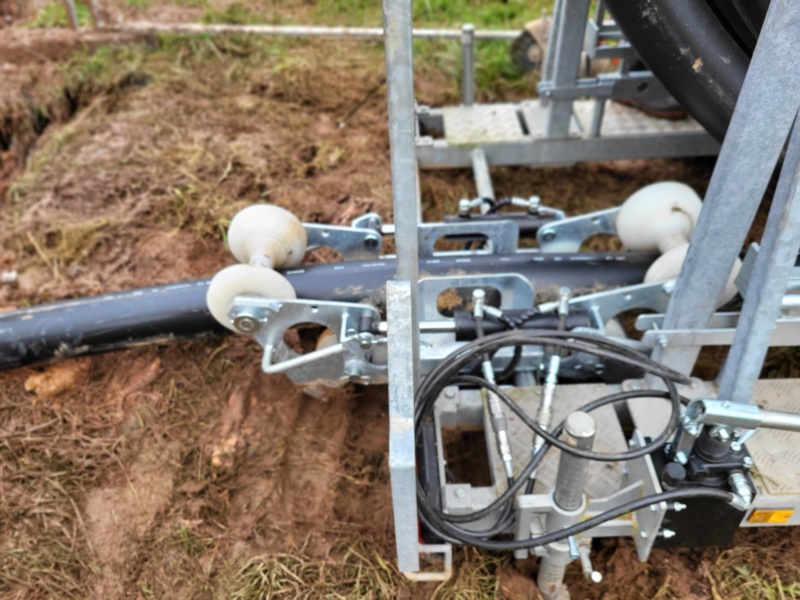

  • Innovative Roller System – Utilises two pairs of conical rollers at the rear of the trailer to neutralise stored energy, rendering the pipe inert and safe.



Technical Specifications for Coil Control

  • Height (mm) – 500mm
  • Length (mm) – 1,000mm
  • Weight (Kg) -Approx 80Kg (excluding pump)
  • Width (mm) – 500mm
  • Max Hydraullic Pressure – 200 bar
  • Compatible SVI Trailers – Hexi Trailer, 180 Pipe Coil Trailer, 125/160 Pipe Coil Trailer
  • PE Sizes – 125mm – 180mm
  • Functions – Coil stored energy reduction & aid to pipe straightening
  • Hydraullic Fittings – BSP
  • Power Source – Manual hydraulic pump
