Coil Control
Details

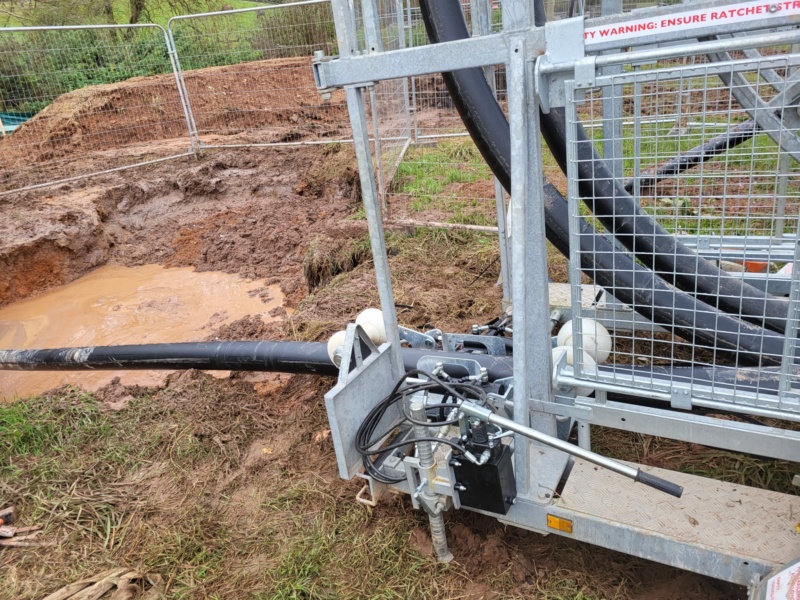

Coil Control is a pipe installation device specifically engineered with safety as a top priority, designed to minimise the inherent dangers associated with handling and dispensing coiled pipe within the gas utilities sector.
This versatile device handles pipe diameters ranging from 125mm to 180mm, ensuring a safer, more efficient pipeline installation process. Coil Control can be easily fitted to the rear of the trailer on site, allowing for quick installation and setup. Its design permits easy interchangeability across the different SVI trailer models, ensuring time efficiency and flexibility for your projects. With Coil Control, you can significantly enhance the safety and efficiency of your pipeline installations, reducing risks and improving operational productivity.
Coil Control was specifically designed for the 180 Pipe Coil Trailer, but it is also compatible with the SVI Hexi Trailer and 125/160 Pipe Coil Trailer.
Downloads
Benefits of Coil Control
- Mitigates the dangers of Stored Energy – Coil Control removes the stored energy from the pipe, mitigating health and safety risks for site operatives and the public.
- Stable Pipe Handling – The device ensures the pipe is stable on the coil trailer, feeding directly to the floor, thereby reducing manual handling and lifting for operatives.
- Adjustable Straightening Pressures – Easily adapt to different ambient temperatures and pipe SDRs, providing flexibility for various working conditions.
- Environmentally Friendly – Use only the necessary amount of coiled pipe per project; the device can be stopped and removed, allowing the remaining pipe to be used in future projects.
- Minimised Distortion – Dual conical rollers are designed to minimise circumferential distortion, maintaining the integrity of the pipe.
- Easy Installation and Operation – Coil Control can be quickly fitted to the trailer on-site and operated using a manually operated hydraulic pump.
- Versatile Pipe Handling – Compatible with pipe diameters from 125mm to 180mm, making it suitable for a wide range of applications.
- Innovative Roller System – Utilises two pairs of conical rollers at the rear of the trailer to neutralise stored energy, rendering the pipe inert and safe.
Technical Specifications for Coil Control
- Height (mm) – 500mm
- Length (mm) – 1,000mm
- Weight (Kg) -Approx 80Kg (excluding pump)
- Width (mm) – 500mm
- Max Hydraullic Pressure – 200 bar
- Compatible SVI Trailers – Hexi Trailer, 180 Pipe Coil Trailer, 125/160 Pipe Coil Trailer
- PE Sizes – 125mm – 180mm
- Functions – Coil stored energy reduction & aid to pipe straightening
- Hydraullic Fittings – BSP
- Power Source – Manual hydraulic pump
