Perpetual Pipe Pusher
Details

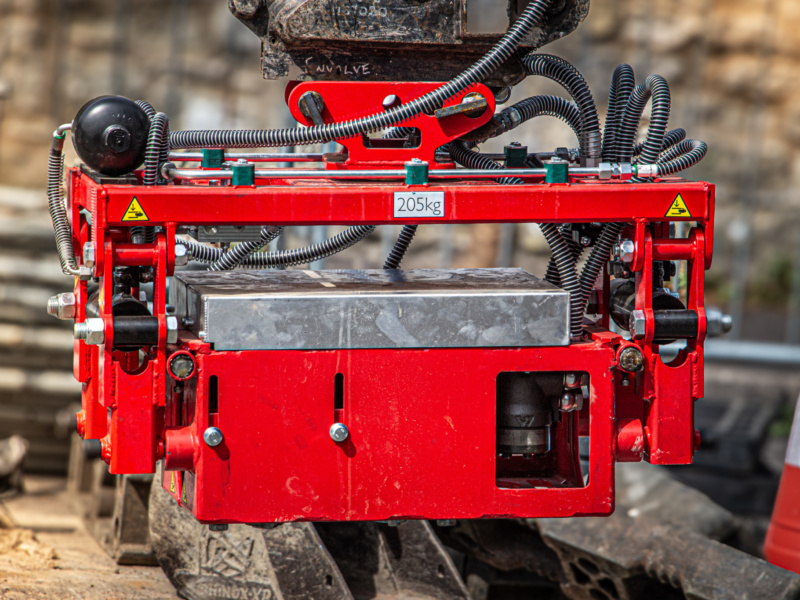

The Perpetual Pipe Pusher is an excavator attachment used to continuously insert coils of pre-insulated pipe up to 162mm using hydraulically driven rubberised rollers.
The Perpetual Pipe Pusher pushes at speeds of 25 metres per minute. Once the attachment is correctly positioned in the trench, the excavator arm remains static throughout the insertion.
Downloads
Benefits of the Perpetual Pipe Pusher
- A highly efficient and fast system to insert coils of pre-insulated pipe
- No increase in normal excavated trench size required
- Safer alternative to using an excavator and sling to insert pre-insulated pipe
- Minimal need for operatives to enter the trench when in operation
- All loading, manoeuvring and inserting operations controlled from the cab
- Offers an efficient, continuous and smooth pushing force which can be reversed if required
- Connects to the arm of most common dual fed hydraulic excavators
- No need for size specific shells
Technical Specifications of the Perpetual Pipe Pusher
- Pre-Insulated Pipe Sizes: 91mm – 162mm O/D
- Functions: Grip, forward and reverse operations
- Height: 490mm (19″)
- Width Open: 550mm (22″)
- Width Closed: 356mm (14″)
- Length: 895mm (35″)
- Top Bracket Pins: 25mm, 30mm and 34mm pins (2 of each) (adaptor’s available for larger excavators)
- Hydraulic Fittings: Typically, 3/8″ and 3/4″ flat face quick fit couplers
