Gas Service Renewal

SMARTester: The wireless pressure test system.


SMART. SEARCHABLE. SAFE

SMARTester is the wireless pressure test system, that ensures absolute traceability and best practice. The fully integrated system combines: SMARTester pressure sensor, an intuitive app and the Dashboard database of test evidence. Together the 3 components work to give you total confidence that your tests are highly accurate, fully compliant and that evidence is instantly traceable.

How does the SMARTester system work?

The SMARTester

It all starts with the SMARTester, which houses the highly accurate stainless-steel pressure sensor, capable of reading up to 700mbar. The robust and waterproof case has been designed to meet the challenges of life in the field and comes with a 12-month calibration certificate, giving you the reassurance of automatic compliance. Using Bluetooth™, the handset wirelessly transmits data to the app.

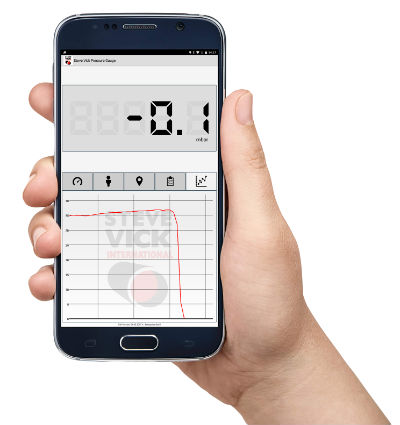

The App

Our customizable app then displays and records pressure readings clearly. Preloaded with industry specific tests, the app will guide your engineers through each step of the process, guaranteeing IGEM test conformity. As well as accurately recording the entire test process, the app also allows for GPS location and photos to be uploaded as part of the test evidence.

This helps to drive competency and ensures engineers are confident that their good practice can be verified. Once a test is complete, Wi-Fi connection or mobile signal transfers data to the Dashboard. No signal? No problem. The test data can also be saved ready to upload when back in range.

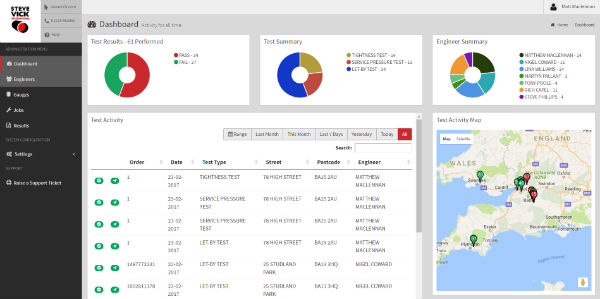

The Dashboard

The Dashboard is the place where all test evidence, including photos, GPS location and calibration certificates, are compiled into a searchable database. Once signed into the secure Dashboard a user can instantly search an abundance of test data, allowing for greater analysis and minimising compliance investigation time. Need to share test evidence? Results can be emailed as a pdf to colleagues or customers at the press of a button.
On top of this wealth of evidence, the Dashboard can also be used to remotely manage teams by scheduling jobs, monitoring monthly statistics and accessing real-time workforce analytics.

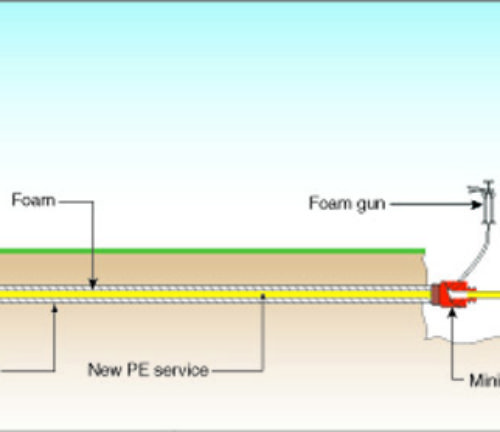

Live Service Insertion

Our live gas service insertion technique, using our patented FOAMPACK™ product, allows companies to renew gas service pipes without interrupting the mains supply and without excavating in the road or footpath. It is designed for use on steel services up to 2” diameter operating at low pressure.

The FOAMPACK™ system is well proven having been in use as an annular sealant for over 20 years. Our no-gas cut off technique, Live Service Isolation, may be carried out prior to insertion.

Gas Service Insertion

Benefits

  • Substantial cost-saving as a repair or cut-off method
  • Avoids the need to excavate in the road or footpath
  • Eliminates risk of personnel working in the highway
  • Annular space sealed with expanding resin foam
  • Quick and easy to use

Products meet GIS/LC14 Specification

Live Service Insertion Removal Tool

Live Service Insertion Removal Tool

Cutting through a live inserted metallic service to expose the PE has traditionally proved difficult.

This tool easily removes a section of the inserted metallic pipe, giving a reliable accurate cut and avoiding damaging the PE.

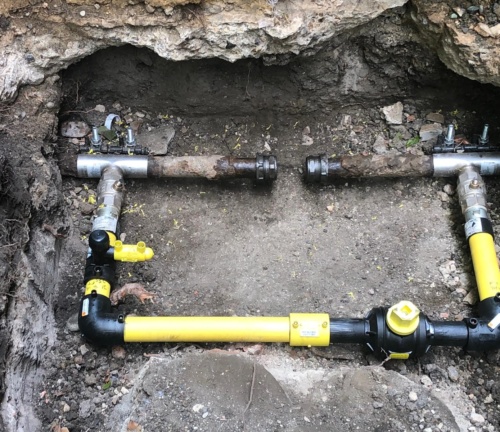

Live Service Transfer

Live Service Transfer

This technique allows a gas service to be partly re-laid and/or transferred to a new main without disrupting the customer’s gas supply.

A solution to the replacement of services to multi-occupancy properties, it also meets the need for renewing uninterruptible supplies such as shops, restaurants and hotels.

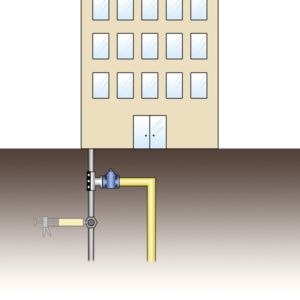

Live Riser Transfer is an enhancement of the system. Carried out by our contract service team, it enables the operator to replace an existing property entry point or modify internal pipework under live conditions.

Products meet GIS/SER/6 Specification

Live Gas Service Isolation

Live Gas Service Isolation was developed at the request of the gas industry for a safe alternative to the traditional method of cutting service pipes in live gas conditions.

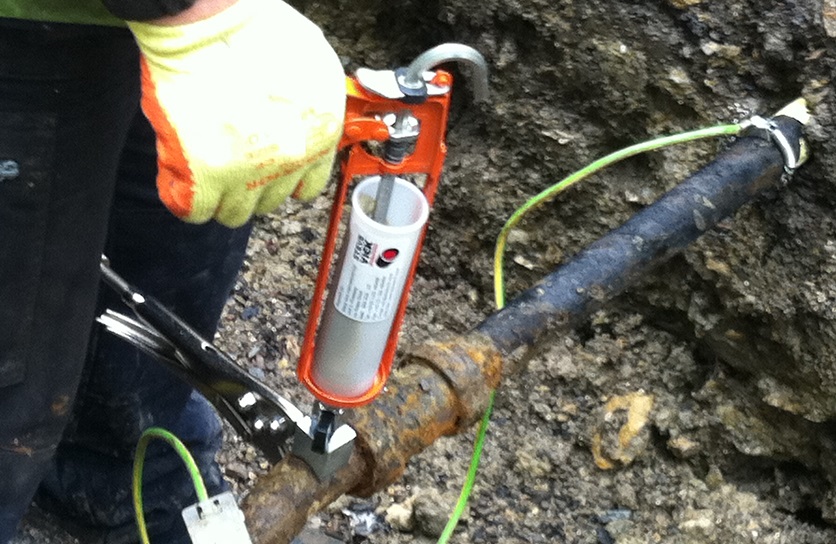

Rapid Service Isolator

Rapid Service Isolator

This new technique developed by Steve Vick International allows an operative to isolate a metallic low pressure service under ‘no gas’ conditions to enable the service to be safely cut and subsequently dead inserted with a new PE pipe.

Currently, the technique is available for low pressure services (up to 75 mbar) with diameters from ¾” to 1¼”, but it is envisaged that larger diameters will subsequently be added.

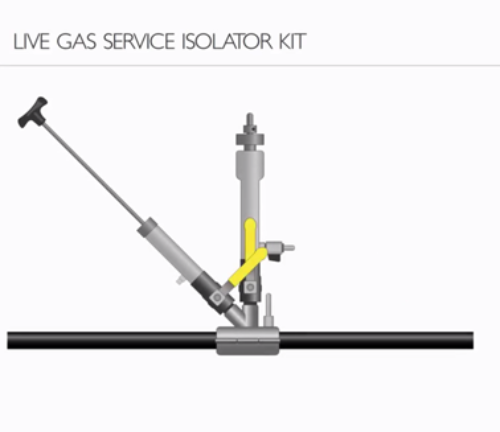

Live Gas Service Isolator

Live Gas Service Isolator

The service is accessed via a small excavation and, using the Steve Vick International Isolator Clamp, the pipe is drilled in no-gas conditions and a temporary stopper is inserted. The operation takes only a few minutes and the service can then be live inserted or capped in the case of abandonment.

Gas Service Renewals – Dead

We offer several options for filling the annulus when services are inserted dead:

FOAMPACK™

FOAMPACK™

Our FOAMPACK™ kits are a convenient annular sealant for injecting from the service head adaptor to fill the prescribed length of the old service.

FULLSEAL™

FULLSEAL™


FULLSEAL™ is a thixotropic material designed specifically for the gas industry as an annular gas sealant. It is suitable for use when either PE or Serviflex™ pipe has been inserted.

FULLSEAL™ is inert, containing no harmful chemicals and requires neither mixing nor other preparation before use. It has no odour and can easily be cleaned with water following accidental spillage.

Taper Tool

Taper Tool™

When dead inserting gas services from outside the premises, it is customary to chamfer the leading edge of the PE pipe to aid speedy insertion.

The Service Taper Tool provides a safe and simple alternative to using a knife or hacksaw to slice a section off the PE to allow it to be pushed easily around even a tight bend into the building.

Now available in 20mm and 25mm sizes.
